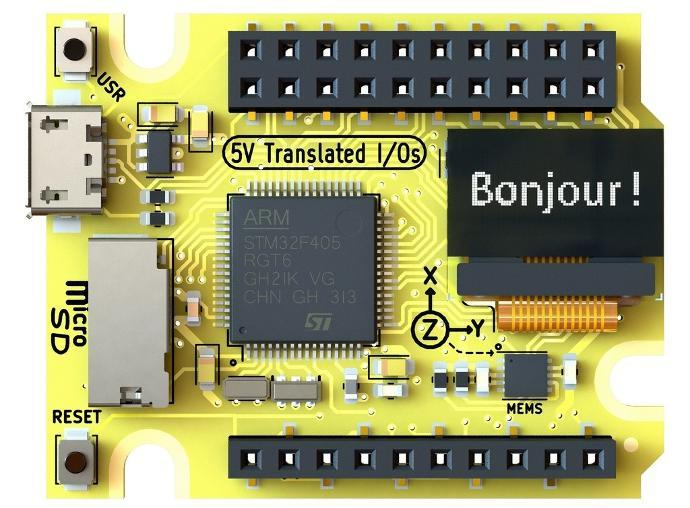

Discover Plug'Uino® Py, an innovative solution based on the PyBoard microcontroller running MicroPython (Python for microcontroller). This bare microcontroller board provides a hassle-free experience with no software installation required, thanks to its ingenious design
Key Features :
Versatile USB Port: Plug'Uino® Py features a USB port that functions simultaneously as a USB drive and a serial port (COM). No additional communication protocol (such as Firmata or others) is required on the computer to interpret Python instructions.
SD Card Recording: All your Python programs are saved on the integrated SD card, providing a convenient and direct storage solution
5V Inputs/Outputs: The inputs/outputs of Plug'Uino® Py are all adapted to 5V, ensuring extended compatibility with Arduino® / Grove® sensors and actuators.
Advanced Features: Integrating a 3-axis digital accelerometer (MMA7660), a backlit 64x32 pixel/0.49'' graphical display, a 128MB SD card, 2 programmable analog outputs, and 22 inputs/outputs, Plug'Uino® Py offers extended features for your projects.
Why Plug'Uino® Py?
Unlike ArduinoTM, no communication protocol installation is required on the computer. Enjoy a hassle-free Python programming experience with Plug'Uino® Py. Explore the versatility of this compact bare microcontroller board (33 x 42 mm) to bring your creative ideas to life.
General Specifications
Processor : ARM Cortex-M4 168 MHz
Flash Memory : 128 Mo (SD Card)
RAM : 192 Kb
SDK included
Power Supply : 5 V
Dimensions : 42 mm x 33 mm
Weight : 5.8 g
Connectivity
USB Port: Acts as a USB drive and a COM port
SD Card: Slot for a maximum 32GB SD card
0.8mm Pins or Grove Extension
Inputs/Outputs
22 digital input/output pins
6 analog inputs (6 DAC)
2 programmable analog outputs (2 ADC)
Other Features
3-axis digital accelerometer (MMA7660)
64x32 pixels OLED display
Reset button
Programmable button
Graphical interface for configuring the board
Usage Methods
Standalone Mode: The board can operate without a computer
